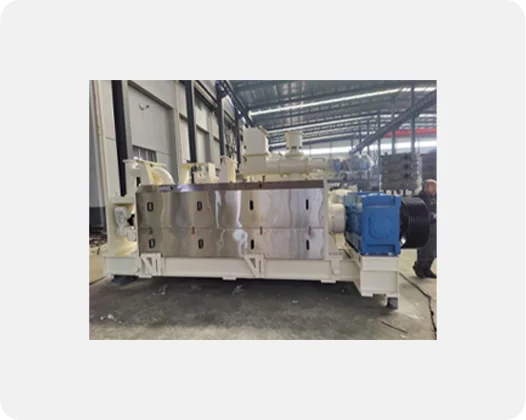

The new ZX320 oil press is an upgraded product of the original 32 oil press. Compared with the original model, a hollow shaft water cooling device is added to avoid the phenomenon of cake sticking. The feeding form is changed to reverse feeding. The gearbox is an upper and lower opening and closing box. The gear is a grinding process and equipped with a cold oil circulation system, which has a longer service life and is more convenient for maintenance. The pressed cake has a good molding effect and good color, which is conducive to leaching. The equipment has a wide range of applications and is not too strict in terms of moisture and temperature. It is also a high and low temperature dual-purpose machine. Even if the material temperature is pressed at a low temperature of 70-80 degrees, it will not affect the residual oil index of the dry cake, and can ensure the low denaturation of protein in the cake. It occupies a small area, reduces maintenance costs, and is easy to manage.
| Model No | Processing Capacity | Cake Oil Rate | Power Matching | Overall Dimensions (LxWxH) | Weight |
| ZX320 | 100 t/d | ≤8% | 110KW | 5050×2190×2330(mm) | 12500 kg |
Main equipment configuration:
1.Feed reducer 4KW, horizontal feed reducer 2.2KW (reducer frequency conversion), oil auger 1.1KW. The gearbox gears of the main gearbox are equipped with a cold oil circulation spray device to fully lubricate the gearbox bearings and gears, greatly extending their service life;
2.The main gearbox is independently researched, designed and produced according to the operating characteristics of the oil press. It has the characteristics of large gear modulus, high strength, torsion resistance, thrust resistance, and low operating noise. The gears adopt hard tooth surface grinding technology;
3.The pressing screw and pressing bar adopt hard alloy technology;
4.The belt is a C-type V-belt produced by Qingdao No. 6 Rubber Factory;
5.The outer cover plate of the oil press is made of 304 stainless steel;
6.The pulley of the oil press is a Martin pulley;
7.The surface of the oil press is shot blasted and rust-proofed, and after grinding, it is coated with two coats of Everest brand glossy anti-rust paint, and the topcoat is Goldfish brand phthalocyanine green topcoat;
8.The main shaft and the reducer are connected with a square head coupling. This connection method does not break the shaft and effectively prevents the main shaft from fatigue fracture; the main shaft is a hollow cooling shaft equipped with an electric calibration device;
9.The main power is 110KW.
